Base class for global DOF spaces. Provides functions to manipulate global DOFs (the local version being provided by LocalDOFSpace). More...
#include <globaldofspace.hpp>

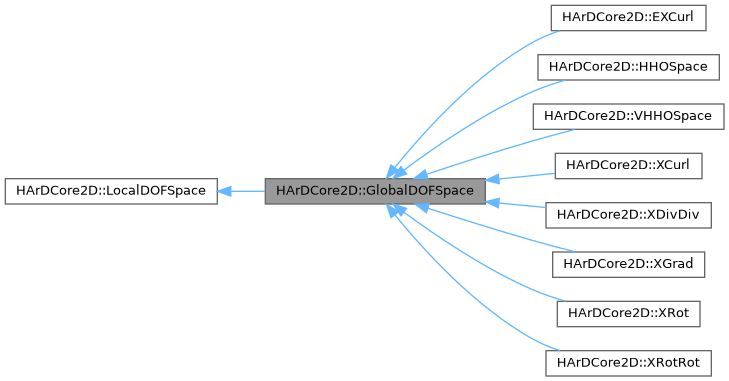

Inheritance diagram for HArDCore2D::GlobalDOFSpace:
Collaboration diagram for HArDCore2D::GlobalDOFSpace:
Public Member Functions | |
| GlobalDOFSpace (const Mesh &mesh, size_t n_local_vertex_dofs, size_t n_local_edge_dofs, size_t n_local_cell_dofs) | |
| Constructor. | |
| size_t | globalOffset (const Vertex &V) const |
| Return the global offset for the unknowns on the vertex V. | |
| size_t | globalOffset (const Edge &E) const |
| Return the global offset for the unknowns on the edge E. | |
| size_t | globalOffset (const Cell &T) const |
| Return the global offset for the unknowns on the cell T. | |
| Eigen::VectorXd | restrictEdge (size_t iE, const Eigen::VectorXd &vh) const |
| Restrict to the edge (including its vertices) of index iE. | |
| Eigen::VectorXd | restrictCell (size_t iT, const Eigen::VectorXd &vh) const |
| Restrict to the cell (including vertices and edges) of index iT. | |
| Eigen::VectorXd | restrict (const Edge &E, const Eigen::VectorXd vh) const |
| Restrict to an edge. | |
| Eigen::VectorXd | restrict (const Cell &T, const Eigen::VectorXd vh) const |
| Restrict to a cell. | |
| Eigen::MatrixXd | extendOperator (const Cell &T, const Edge &E, const Eigen::MatrixXd &opE) const |
| Extend an edge operator to a cell. | |
| std::vector< size_t > | globalDOFIndices (const Cell &T) const |
| void | setLabelDOF (const size_t i, const int label) |
| Set a label to the DOF number i (default label is -1) | |
| int | getLabelDOF (const size_t i) |
| Get label of DOF number i. | |
 Public Member Functions inherited from HArDCore2D::LocalDOFSpace | |
| LocalDOFSpace (const Mesh &mesh, size_t n_local_vertex_dofs, size_t n_local_edge_dofs, size_t n_local_cell_dofs) | |
| Constructor. | |
| const Mesh & | mesh () const |
| Returns the mesh. | |
| size_t | numLocalDofsVertex () const |
| Returns the number of local vertex DOFs. | |
| size_t | numLocalDofsEdge () const |
| Returns the number of local edge DOFs. | |
| size_t | numLocalDofsCell () const |
| Returns the number of local cell DOFs. | |
| size_t | dimension () const |
| Returns the dimension of the global space (all DOFs for all geometric entities) | |
| size_t | numTotalDofsVertices () const |
| Returns the total number of vertex DOFs. | |
| size_t | numTotalDofsEdges () const |
| Returns the total number of vertex DOFs. | |
| size_t | numTotalDofsCells () const |
| Returns the total number of vertex DOFs. | |
| size_t | dimensionVertex (const Vertex &V) const |
| Returns the dimension of the local space on the vertex V. | |
| size_t | dimensionVertex (size_t iV) const |
| Returns the dimension of the local space on the vertex of index iV. | |
| size_t | dimensionEdge (const Edge &E) const |
| Returns the dimension of the local space on the edge E (including vertices) | |
| size_t | dimensionEdge (size_t iE) const |
| Returns the dimension of the local space on the edge of index iE (including vertices) | |
| size_t | dimensionCell (const Cell &T) const |
| Returns the dimension of the local space on the cell T (including faces, edges and vertices) | |
| size_t | dimensionCellBoundary (const Cell &T) const |
| Returns the dimension of the local space on the boundary of T. | |
| size_t | dimensionCell (size_t iT) const |
| Returns the dimension of the local space on the cell of index iT (including faces, edges and vertices) | |
| size_t | dimensionCellBoundary (size_t iT) const |
| Returns the dimension of the local space on the boundary of T. | |
| size_t | localOffset (const Edge &E, const Vertex &V) const |
| Returns the local offset of the vertex V with respect to the edge E. | |
| size_t | localOffset (const Edge &E) const |
| Returns the local offset of the unknowns attached to the edge E. | |
| size_t | localOffset (const Cell &T, const Vertex &V) const |
| Returns the local offset of the vertex V with respect to the cell T. | |
| size_t | localOffset (const Cell &T, const Edge &E) const |
| Returns the local offset of the edge E with respect to the cell T. | |
| size_t | localOffset (const Cell &T) const |
| Returns the local offset of the unknowns attached to the element T. | |
Additional Inherited Members | |
| Protected Attributes inherited from HArDCore2D::LocalDOFSpace | |
| const Mesh & | m_mesh |
| size_t | m_n_local_vertex_dofs |
| size_t | m_n_local_edge_dofs |
| size_t | m_n_local_cell_dofs |
Detailed Description
Base class for global DOF spaces. Provides functions to manipulate global DOFs (the local version being provided by LocalDOFSpace).
The DOFs are organised by increasing geometric entities dimensions: DOFs of vertices, DOFs of edges, DOFs of cells.
The documentation for this class was generated from the following files:
- src/Common/globaldofspace.hpp
- src/Common/globaldofspace.cpp
