Base class for DOF spaces: functions to access local DOFs (organised from the smallest dimension to the largest) associated with each geometric entity. More...
#include <localdofspace.hpp>

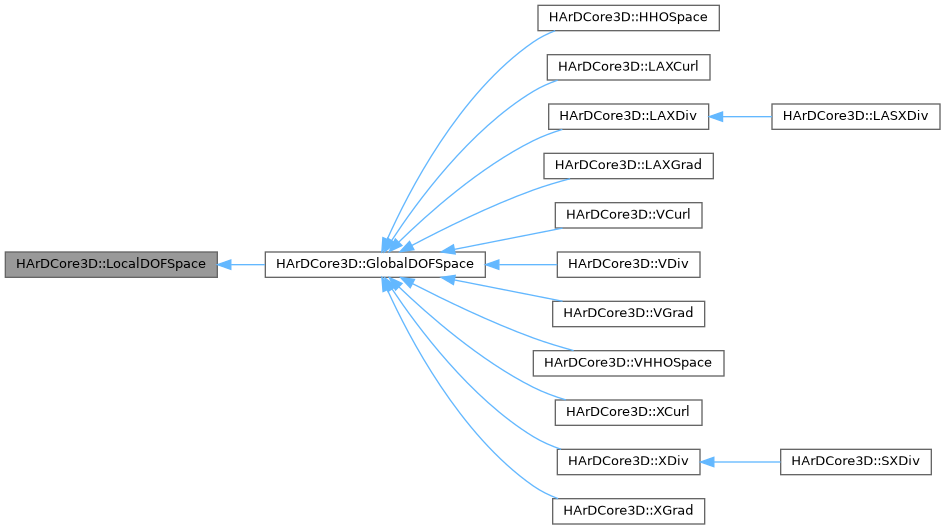

Inheritance diagram for HArDCore3D::LocalDOFSpace:
Collaboration diagram for HArDCore3D::LocalDOFSpace:
Public Member Functions | |
| LocalDOFSpace (const Mesh &mesh, size_t n_local_vertex_dofs, size_t n_local_edge_dofs, size_t n_local_face_dofs, size_t n_local_cell_dofs) | |
| Constructor. | |
| const Mesh & | mesh () const |
| Returns the mesh. | |
| size_t | numLocalDofsVertex () const |
| Returns the number of local vertex DOFs. | |
| size_t | numLocalDofsEdge () const |
| Returns the number of local edge DOFs. | |
| size_t | numLocalDofsFace () const |
| Returns the number of local face DOFs. | |
| size_t | numLocalDofsCell () const |
| Returns the number of local cell DOFs. | |
| size_t | numLocalDofs (size_t d) const |
| Returns the number of local d-cell DOFs. | |
| size_t | dimension () const |
| Returns the dimension of the global space (all DOFs for all geometric entities) | |
| size_t | dimensionVertex (const Vertex &V) const |
| Returns the dimension of the local space on the vertex V. | |
| size_t | dimensionVertex (size_t iV) const |
| Returns the dimension of the local space on the vertex of index iV. | |
| size_t | dimensionEdge (const Edge &E) const |
| Returns the dimension of the local space on the edge E (including vertices) | |
| size_t | dimensionEdge (size_t iE) const |
| Returns the dimension of the local space on the edge of index iE (including vertices) | |
| size_t | dimensionFace (const Face &F) const |
| Returns the dimension of the local space on the face F (including edges and vertices) | |
| size_t | dimensionFace (size_t iF) const |
| Returns the dimension of the local space on the face of index iF (including edges and vertices) | |
| size_t | dimensionCell (const Cell &T) const |
| Returns the dimension of the local space on the cell T (including faces, edges and vertices) | |
| size_t | dimensionCell (size_t iT) const |
| Returns the dimension of the local space on the cell of index iT (including faces, edges and vertices) | |
| size_t | dimension (size_t d, size_t i) const |
| Returns the dimension of the local space on the d-cell of index i (including its boundary) | |
| size_t | localOffset (const Edge &E, const Vertex &V) const |
| Returns the local offset of the vertex V with respect to the edge E. | |
| size_t | localOffset (const Edge &E) const |
| Returns the local offset of the unknowns attached to the edge E. | |
| size_t | localOffset (const Face &F, const Vertex &V) const |
| Returns the local offset of the vertex V with respect to the face F. | |
| size_t | localOffset (const Face &F, const Edge &E) const |
| Returns the local offset of the edge E with respect to the face F. | |
| size_t | localOffset (const Face &F) const |
| Returns the local offset of the unknowns attached to the face F. | |
| size_t | localOffset (const Cell &T, const Vertex &V) const |
| Returns the local offset of the vertex V with respect to the cell T. | |
| size_t | localOffset (const Cell &T, const Edge &E) const |
| Returns the local offset of the edge E with respect to the cell T. | |
| size_t | localOffset (const Cell &T, const Face &F) const |
| Returns the local offset of the face F with respect to the cell T. | |
| size_t | localOffset (const Cell &T) const |
| Returns the local offset of the unknowns attached to the element T. | |
Protected Attributes | |
| const Mesh & | m_mesh |
| size_t | m_n_local_vertex_dofs |
| size_t | m_n_local_edge_dofs |
| size_t | m_n_local_face_dofs |
| size_t | m_n_local_cell_dofs |
Detailed Description
Base class for DOF spaces: functions to access local DOFs (organised from the smallest dimension to the largest) associated with each geometric entity.
In a cell T, for example, the DOFs are presented in the order: DOFs of vertices of T, DOFs of edges of T, DOFs of faces of T, DOFs of T.
The documentation for this class was generated from the following files:
- src/Common/localdofspace.hpp
- src/Common/localdofspace.cpp
