basis.hpp File Reference

#include <boost/multi_array.hpp>
#include <mesh.hpp>
#include <iostream>
#include <polynomialspacedimension.hpp>
#include <quadraturerule.hpp>

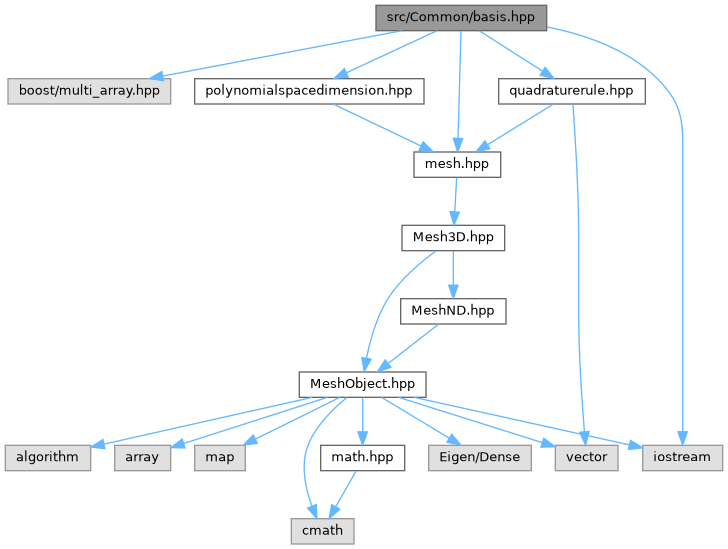

Include dependency graph for basis.hpp:

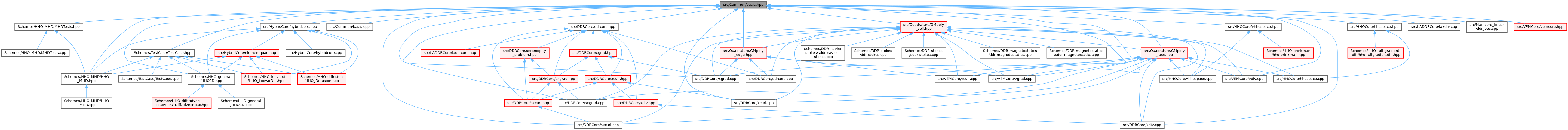

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	HArDCore3D::MonomialPowers< GeometricSupport >
	Compute vectors listing the powers of monomial basis functions (for a cell or face, only specializations are relevant) up to a certain degree. More...
struct	HArDCore3D::MonomialPowers< Cell >
struct	HArDCore3D::MonomialPowers< Face >
class	HArDCore3D::MonomialScalarBasisCell
	Scalar monomial basis on a cell. More...
class	HArDCore3D::MonomialScalarBasisFace
	Scalar monomial basis on a face. More...
class	HArDCore3D::MonomialScalarBasisEdge
	Scalar monomial basis on an edge. More...
class	HArDCore3D::Family< BasisType >
	Family of functions expressed as linear combination of the functions of a given basis. More...
class	HArDCore3D::TensorizedVectorFamily< ScalarFamilyType, N >
	Vector family obtained by tensorization of a scalar family. More...
class	HArDCore3D::MatrixFamily< ScalarFamilyType, N >
	Matrix family obtained from a scalar family. More...
class	HArDCore3D::TangentFamily< ScalarFamilyType >
	Vector family for polynomial functions that are tangent to a certain place (determined by the generators) More...
class	HArDCore3D::ShiftedBasis< BasisType >
	Generate a basis where the function indices are shifted. More...
class	HArDCore3D::RestrictedBasis< BasisType >
	Generate a basis restricted to the first "dimension" functions. More...
class	HArDCore3D::GradientBasis< BasisType >
	Basis for the space of gradients of polynomials. More...
class	HArDCore3D::CurlBasis< BasisType >
	Basis for the space of curls of polynomials. More...
class	HArDCore3D::DivergenceBasis< BasisType >
	Basis (or rather family) of divergence of an existing basis. More...
class	HArDCore3D::RolyComplBasisCell
	Basis for the complement R^{c,k}(T) in P^k(T)^3 of the range of curl. More...
class	HArDCore3D::GolyComplBasisCell
	Basis for the complement G^{c,k}(T) in P^k(T)^3 of the range of grad. More...
class	HArDCore3D::RolyComplBasisFace
	Basis for the complement R^{c,k}(F) in P^k(F)^2 of the range of the vectorial rotational on a face. More...
class	HArDCore3D::GolyComplBasisFace
	Basis for the complement G^{c,k}(F) in P^k(F)^2 of the range of the gradient on a face. More...
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, BasisFunction >
	Basis evaluation traits. Only specialization of 'BasisFunction' (=Function, Gradient, Curl or Divergence) are relevant, and determines what kind of value we want to evaluate. More...
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, Function >
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, Gradient >
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, Curl >
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, Divergence >
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, Hessian >
struct	HArDCore3D::detail::basis_evaluation_traits< BasisType, CurlCurl >
struct	HArDCore3D::detail::basis_evaluation_traits< TensorizedVectorFamily< ScalarBasisType, N >, Function >
struct	HArDCore3D::detail::basis_evaluation_traits< TensorizedVectorFamily< ScalarBasisType, N >, Gradient >
struct	HArDCore3D::detail::basis_evaluation_traits< TensorizedVectorFamily< ScalarBasisType, N >, Curl >
struct	HArDCore3D::detail::basis_evaluation_traits< TensorizedVectorFamily< ScalarBasisType, N >, Divergence >
struct	HArDCore3D::detail::basis_evaluation_traits< TensorizedVectorFamily< ScalarBasisType, N >, CurlCurl >
struct	HArDCore3D::detail::basis_evaluation_traits< MatrixFamily< ScalarBasisType, N >, Function >
struct	HArDCore3D::detail::basis_evaluation_traits< MatrixFamily< ScalarBasisType, N >, Divergence >
struct	HArDCore3D::evaluate_quad< BasisFunction >
	Evaluate a basis at quadrature nodes. 'BasisFunction' (=Function, Gradient, Curl, Divergence or Hessian) determines what kind of value we want to evaluate. More...
struct	HArDCore3D::DecomposePoly< BasisType >
	Structure to decompose a set of polynomials on a basis on a face or a cell. More...

Namespaces
namespace	HArDCore3D
namespace	HArDCore3D::detail

Typedefs
typedef Eigen::Matrix3d	HArDCore3D::MatrixRd
template<typename T >
using	HArDCore3D::FType = std::function< T(const VectorRd &)>
	type for function of point. T is the return type of the function
template<typename T >
using	HArDCore3D::CellFType = std::function< T(const VectorRd &, const Cell *)>
	type for function of point. T is the return type of the function
template<typename T >
using	HArDCore3D::BasisQuad = boost::multi_array< T, 2 >
	type for bases evaluated on quadrature nodes

Enumerations
enum	HArDCore3D::TensorRankE { HArDCore3D::Scalar = 0 , HArDCore3D::Vector = 1 , HArDCore3D::Matrix = 2 }
enum	HArDCore3D::BasisFunctionE {   HArDCore3D::Function , HArDCore3D::Gradient , HArDCore3D::Curl , HArDCore3D::Divergence ,   HArDCore3D::Hessian , HArDCore3D::CurlCurl }

Functions
template<typename ScalarFamilyType >
DivergenceBasis< TangentFamily< ScalarFamilyType > >	HArDCore3D::ScalarRotFamily (const TangentFamily< ScalarFamilyType > &tangent_family, const Face &F)
	The following function creates the "scalar rot" basis of a TangentFamily on a face.
template<typename outValue , typename inValue , typename FunctionType >
boost::multi_array< outValue, 2 >	HArDCore3D::transform_values_quad (const boost::multi_array< inValue, 2 > &B_quad, const FunctionType &F)
	Takes an array B_quad of values at quadrature nodes and applies the function F to all of them. F must take inValue and return outValue. The function must be called with outValue as template argument: transform_values_quad<outValue>(...)
template<typename ScalarBasisType , size_t N>
Family< TensorizedVectorFamily< ScalarBasisType, N > >	HArDCore3D::GenericTensorization (const ScalarBasisType &B, const std::vector< Eigen::VectorXd > &v)
	From a scalar family B=(B_1..B_r) and vectors (v_1..v_k) in R^N, constructs a "Family" of "TensorizedVectorFamily" (built on B, of size N) that represents the family (B_1v_1..B_rv_1 B_1v_2...B_rv_2...B_1v_k...B_rv_k).
Eigen::MatrixXd	HArDCore3D::PermuteTensorization (const size_t a, const size_t b)
	Returns the matrix giving the permutation of the tensorization of a family of size a with a family of size b.
template<typename ScalarBasisType , size_t N>
Family< MatrixFamily< ScalarBasisType, N > >	HArDCore3D::IsotropicMatrixFamily (const ScalarBasisType &B)
	From a scalar family B, constructs a "Family" of "MatrixFamily" (built on B, of size NxN) that represents the family B Id on the MatrixFamily.
template<typename T >
Eigen::MatrixXd	HArDCore3D::gram_schmidt (boost::multi_array< T, 2 > &basis_eval, const std::function< double(size_t, size_t)> &inner_product)
double	HArDCore3D::scalar_product (const double &x, const double &y)
	Scalar product between two reals.
double	HArDCore3D::scalar_product (const double &x, const Eigen::Matrix< double, 1, 1 > &y)
	Scalar product between one real and one 1-dimension Eigen vector.
double	HArDCore3D::scalar_product (const VectorRd &x, const VectorRd &y)
	Scalar product between two vectors.
template<int N>
double	HArDCore3D::scalar_product (const Eigen::Matrix< double, N, N > &x, const Eigen::Matrix< double, N, N > &y)
	Scalar product between two matrices.
template<typename Value >
boost::multi_array< double, 2 >	HArDCore3D::scalar_product (const boost::multi_array< Value, 2 > &basis_quad, const Value &v)
	This overloading of the scalar_product function computes the scalar product between an evaluation of a basis and a constant value; both basis values and constant value must be of type Value.
boost::multi_array< VectorRd, 2 >	HArDCore3D::vector_product (const boost::multi_array< VectorRd, 2 > &basis_quad, const VectorRd &v)
	Compute the vector (cross) product between the evaluation of a basis and a constant vector.
template<typename BasisType >
Family< BasisType >	HArDCore3D::l2_orthonormalize (const BasisType &basis, const QuadratureRule &qr, boost::multi_array< typename BasisType::FunctionValue, 2 > &basis_quad)
	\(L^2\)-orthonormalization: simply consists in using gram_schmidt() with the specific l2 inner product
template<typename BasisType >
Family< BasisType >	HArDCore3D::l2_orthonormalize (const BasisType &basis, const Eigen::MatrixXd &GM)
	\(L^2\)-orthonormalization: when the Gram Matrix is passed, we use Cholesky.
template<typename FunctionValue >
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< FunctionValue, 2 > &B1, const boost::multi_array< FunctionValue, 2 > &B2, const QuadratureRule &qr, const size_t nrows, const size_t ncols, const std::string sym="nonsym")
template<typename FunctionValue >
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< FunctionValue, 2 > &B1, const boost::multi_array< FunctionValue, 2 > &B2, const QuadratureRule &qr, const std::string sym="nonsym")
template<typename FunctionValue >
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< FunctionValue, 2 > &B, const QuadratureRule &qr)
	Compute the Gram matrix given the evaluation of one family of functions at quadrature nodes. Consists in calling the generic templated version with B1=B2.
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< VectorRd, 2 > &B1, const boost::multi_array< double, 2 > &B2, const QuadratureRule &qr)
	Compute the Gram-like matrix given a family of vector-valued and one of scalar-valued functions by tensorizing the latter.
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< double, 2 > &B1, const boost::multi_array< double, 2 > &B2, const QuadratureRule &qr, const size_t nrows, const size_t ncols, const std::string sym)
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< double, 2 > &B1, const boost::multi_array< double, 2 > &B2, const QuadratureRule &qr, const std::string sym)
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< VectorRd, 2 > &B1, const boost::multi_array< VectorRd, 2 > &B2, const QuadratureRule &qr, const size_t nrows, const size_t ncols, const std::string sym)
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const boost::multi_array< VectorRd, 2 > &B1, const boost::multi_array< VectorRd, 2 > &B2, const QuadratureRule &qr, const std::string sym="nonsym")
	Compute the Gram-like matrix given the evaluation of two families of functions at quadrature nodes. Consists in calling the Vector3d-valued version with nrows = nb of elements in B1, ncols = nb of elements in B2.
template<typename ScalarFamilyType , size_t N>
Eigen::MatrixXd	HArDCore3D::compute_gram_matrix (const MatrixFamily< ScalarFamilyType, N > &MatFam, const boost::multi_array< double, 2 > &scalar_family_quad, const QuadratureRule &qr)
	Compute the Gram-like matrix for a MatrixFamily. This overload is more efficient than the generic function as it only computes the gram matrix of the underlying scalar family, and then creates the bloc-diagonal gram matrix of the MatrixFamily (which is indeed bloc diagonal given the choice of m_E elements in this class).
template<typename T >
Eigen::VectorXd	HArDCore3D::integrate (const FType< T > &f, const BasisQuad< T > &B, const QuadratureRule &qr, size_t n_rows=0)
	Computes the vector of integrals (f, phi_i)
template<typename T , typename U >
Eigen::MatrixXd	HArDCore3D::compute_weighted_gram_matrix (const FType< U > &f, const BasisQuad< T > &B1, const BasisQuad< T > &B2, const QuadratureRule &qr, size_t n_rows=0, size_t n_cols=0, const std::string sym="nonsym")
	Computes the Gram-like matrix of integrals (f phi_i, phi_j)
template<typename T , typename U >
Eigen::MatrixXd	HArDCore3D::compute_weighted_gram_matrix (const FType< U > &f, const BasisQuad< T > &B1, const BasisQuad< T > &B2, const QuadratureRule &qr, const std::string sym)
	Computes the Gram-like matrix of integrals (f phi_i, phi_j)
Eigen::MatrixXd	HArDCore3D::compute_weighted_gram_matrix (const FType< VectorRd > &f, const BasisQuad< VectorRd > &B1, const BasisQuad< double > &B2, const QuadratureRule &qr, size_t n_rows=0, size_t n_cols=0)
	Computes the Gram-like matrix of integrals (f dot phi_i, phi_j)
Eigen::MatrixXd	HArDCore3D::compute_weighted_gram_matrix (const FType< VectorRd > &f, const BasisQuad< double > &B1, const BasisQuad< VectorRd > &B2, const QuadratureRule &qr, size_t n_rows=0, size_t n_cols=0)
	Computes the Gram-like matrix of integrals (phi_i, f dot phi_j)
template<typename BasisType >
Eigen::VectorXd	HArDCore3D::l2_projection (const std::function< typename BasisType::FunctionValue(const VectorRd &)> &f, const BasisType &basis, QuadratureRule &quad, const boost::multi_array< typename BasisType::FunctionValue, 2 > &basis_quad, const Eigen::MatrixXd &mass_basis=Eigen::MatrixXd::Zero(1, 1))
	Compute the L2-projection of a function.

Variables
constexpr int	HArDCore3D::dimspace = 3
	Dimension, and generic types for vector in correct dimension (makes it easier to translate a code between 2D and 3D)
static const std::vector< VectorRd >	HArDCore3D::basisRd = { VectorRd(1., 0., 0.), VectorRd(0., 1., 0.), VectorRd(0., 0., 1.) }
static std::function< Eigen::MatrixXd(const Eigen::MatrixXd &)>	HArDCore3D::symmetrise_matrix = [](const Eigen::MatrixXd & x)->Eigen::MatrixXd { return 0.5*(x+x.transpose());}
	Function to symmetrise a matrix (useful together with transform_values_quad)
static std::function< Eigen::MatrixXd(const Eigen::MatrixXd &)>	HArDCore3D::skew_symmetrise_matrix = [](const Eigen::MatrixXd & x)->Eigen::MatrixXd { return 0.5*(x-x.transpose());}
	Function to skew-symmetrise a matrix (useful together with transform_values_quad)
