HArDCore2D::NSASolutions::IExactSolution Struct Reference

#include <nsa-solutions.hpp>

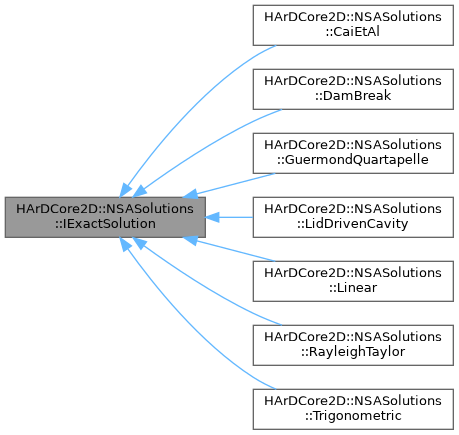

Inheritance diagram for HArDCore2D::NSASolutions::IExactSolution:

Public Member Functions
	IExactSolution (std::string name, bool is_stokes, double viscosity)
virtual	~IExactSolution ()
std::string	name () const
	Return the solution name.
bool	isStokes () const
double	viscosity () const
	Return the viscosity.
virtual Eigen::Vector2d	momentumForcingTerm (const Eigen::Vector2d &x, const double &t=0) const =0
virtual double	compressibilityForcingTerm (const Eigen::Vector2d &x, const double &t=0) const =0
virtual double	densityForcingTerm (const Eigen::Vector2d &x, const double &t=0) const =0
virtual Eigen::Vector2d	velocity (const Eigen::Vector2d &x, const double &t=0) const =0
virtual double	pressure (const Eigen::Vector2d &x, const double &t=0) const =0
virtual Eigen::Matrix2d	velocityGradient (const Eigen::Vector2d &x, const double &t=0) const =0
virtual Eigen::Vector2d	pressureGradient (const Eigen::Vector2d &x, const double &t=0) const =0
virtual double	volumicFraction (const Eigen::Vector2d &x, const double &t=0) const =0

Protected Attributes
std::string	m_name
bool	m_is_stokes
double	m_viscosity

Constructor & Destructor Documentation

IExactSolution()

IExactSolution::IExactSolution	(	std::string	name,
		bool	is_stokes,
		double	viscosity
	)

~IExactSolution()

IExactSolution::~IExactSolution ( )

virtual

Member Function Documentation

compressibilityForcingTerm()

virtual double HArDCore2D::NSASolutions::IExactSolution::compressibilityForcingTerm ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

densityForcingTerm()

virtual double HArDCore2D::NSASolutions::IExactSolution::densityForcingTerm ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

isStokes()

bool HArDCore2D::NSASolutions::IExactSolution::isStokes ( ) const

inline

Return true if the solution is for the Stokes problem, false if it is for the Navier-Stokes problem

momentumForcingTerm()

virtual Eigen::Vector2d HArDCore2D::NSASolutions::IExactSolution::momentumForcingTerm ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

name()

std::string HArDCore2D::NSASolutions::IExactSolution::name ( ) const

inline

Return the solution name.

pressure()

virtual double HArDCore2D::NSASolutions::IExactSolution::pressure ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

pressureGradient()

virtual Eigen::Vector2d HArDCore2D::NSASolutions::IExactSolution::pressureGradient ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

velocity()

virtual Eigen::Vector2d HArDCore2D::NSASolutions::IExactSolution::velocity ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

velocityGradient()

virtual Eigen::Matrix2d HArDCore2D::NSASolutions::IExactSolution::velocityGradient ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

viscosity()

double HArDCore2D::NSASolutions::IExactSolution::viscosity ( ) const

inline

Return the viscosity.

volumicFraction()

virtual double HArDCore2D::NSASolutions::IExactSolution::volumicFraction ( const Eigen::Vector2d &  x, const double &  t = 0  ) const

pure virtual

Implemented in HArDCore2D::NSASolutions::Linear, HArDCore2D::NSASolutions::Trigonometric, HArDCore2D::NSASolutions::CaiEtAl, HArDCore2D::NSASolutions::GuermondQuartapelle, HArDCore2D::NSASolutions::LidDrivenCavity, HArDCore2D::NSASolutions::RayleighTaylor, and HArDCore2D::NSASolutions::DamBreak.

Member Data Documentation

m_is_stokes

bool HArDCore2D::NSASolutions::IExactSolution::m_is_stokes

protected

m_name

std::string HArDCore2D::NSASolutions::IExactSolution::m_name

protected

m_viscosity

double HArDCore2D::NSASolutions::IExactSolution::m_viscosity

protected

---

The documentation for this struct was generated from the following files:

• Schemes/HHO-ns/nsa-solutions.hpp
• Schemes/HHO-ns/nsa-solutions.cpp
